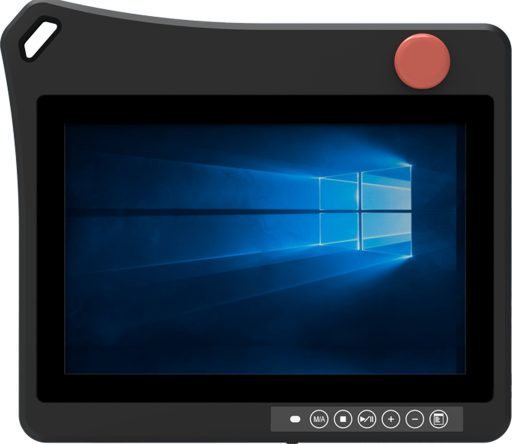

Eastar today introduced its new PM‑TP2 10.1‑inch Teach Pendant, a professional-grade operator interface that combines precision touchscreen control with a rugged, IP‑rated design ideal for industrial automation and robotics.
Moenchengladbach, Germany – June 28th 2025 –
Key Specifications & Design Highlights
- 10.1″ WXGA TFT screen (1280×800, 16:10 aspect ratio) featuring capacitive multi‑touch support and 500 cd/m² brightness—ensuring bright, crisp visuals even under harsh lighting.
- Full IP65-rated aluminum-magnesium front bezel and ABS+PC rear housing, offering robust dust and waterproof protection, ideal for factory floors.
- Durable touch surface with 10‑point P‑CAP and anti‑scratch 7H hardness.
Advanced Functionality & Safety
- Equipped with essential operator controls: e‑stop button, three‑position enabling switch, and six shortcut keys.
- Safety and control signals routed via IDD‑LINK4 or optional DVI/HDMI, USB ports, and emergency stop—using CAT6 cable for clean integration up to 100 m.
- Operates on standard 24 V DC power (19.2–28.8 V) and draws ~1 A, making it suitable for a wide range of controller systems.
Ergonomics & Industrial Reliability
Weighing around 1.4–1.5 kg, the pendant is designed with ergonomic contours and optional shoulder straps for operator comfort during extended use. Revised mechanical button layout and a grounded housing cater to industry safety and usability standards.
Software Compatibility
The PM‑TP2 supports multiple operating systems (Windows 7/8/10/XP, Linux, CE), providing flexibility across diverse industrial environments and legacy systems.
Ideal Use‑Cases & Applications
Engineered for environments such as CNC machining, industrial robotics, pick‑and‑place operations, and harsh production lines, the PM‑TP2 stands out as a high‑precision, portable human-machine interface. Its IP65 build means it handles dust and water spray, while system grounding ensures compliance with EMC regulations—critical in automated cell setups.
Market Position & Production Readiness
Offering a 2‑year warranty, Eastar’s pendant is backed by more than a decade of experience in industrial HMIs. Typical lead time ranges from 2-3 weeks for standard units and 4-6 weeks for custom configurations, making it suitable for both quick deployments and bespoke installations.
Summary
Eastar’s PM‑TP2 Teach Pendant combines heavy-duty durability, responsive touch controls, and versatile connectivity in a compact design. It is positioned to serve advanced automation setups where safety, usability, and rugged performance are non-negotiable. With strong IP protection, ergonomic design, and comprehensive I/O, it stands ready to elevate operator interaction in industrial robotics and CNC cells.
