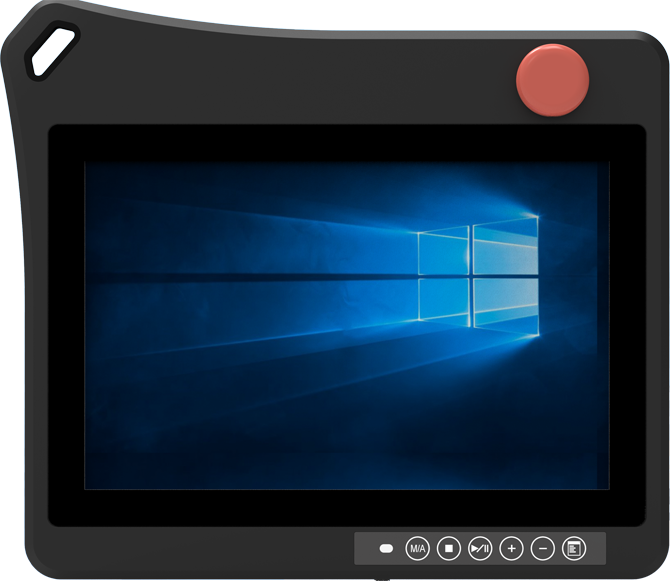

10.1 Inch Teach Pendant PM-TP2

10.1" teach pendant for handling robots
1280 x 800 resoluton, 16,7 million color
IP：IP54
Ergonomic design, comfortable and easy to operate
Buttons in front of the GUI for quick access to custom functions

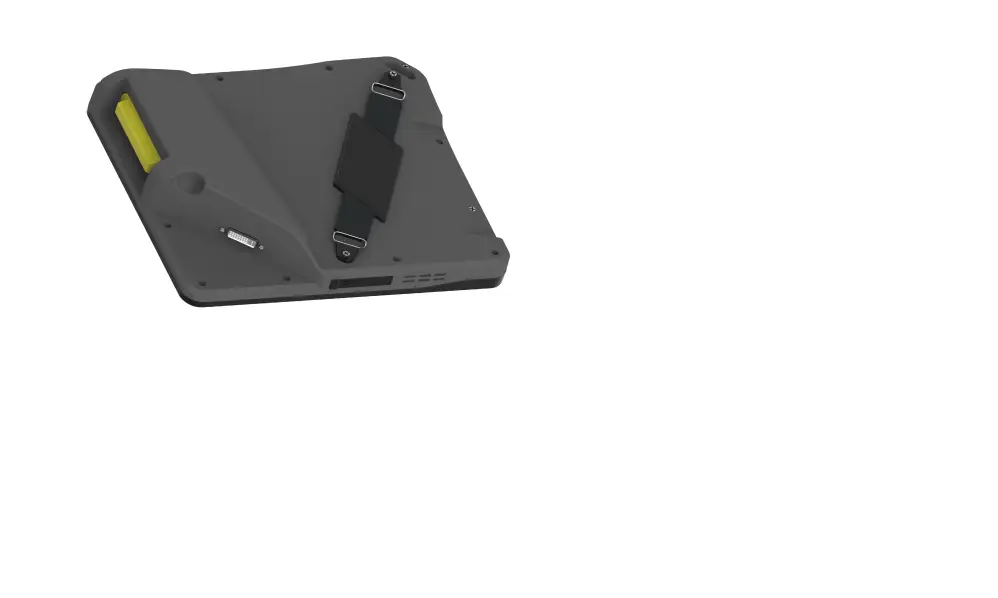

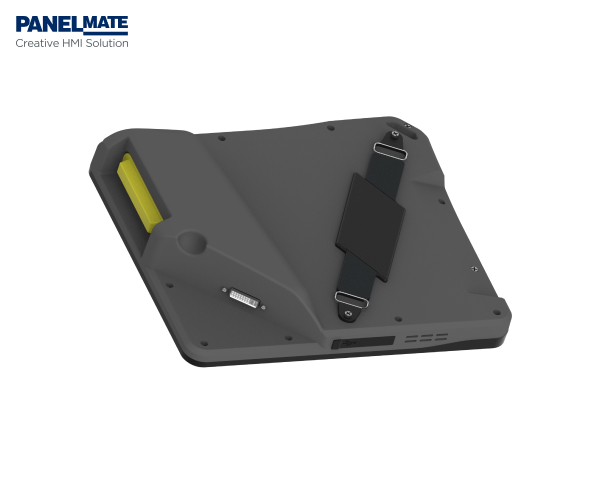

Shoulder straps and grips are designed to simplify operation and prevent fatigue
System frame grounding protection (GPE) design
Optional R2 (IDD-LINK4), Video and USB are transmitted via a single CAT6 network cable up to 100 m
OS：Win10, Win11, Linux etc
DC 24V

Are you interested in this product? Just leave us a message and we will get in contact with you.

System Hardware
Display
Size	10.1"
Resolution	1280 x 800
Max Color	16,7 million
Luminance	400 cd/m2
View Angles	(L) 85 / (R) 85 / (U) 85 / (D) 85
MTBF	30,000 hrs
Contrast ratio	800:1
OS
OS	Windows 10, Windows 11/ Linux
Touch Screen
Touch Type	Multi-point capacitive touch screen
Light Transmission	>85%
Controller	USB
Driver Support	Windows10, Windows11, Linux, etc
Multi-touch	10 points
Surface Hardness	Capacitive touchscreen：Mohs' Number 7H
Power
Button	Yes, in front
DC Input	24V DC
Environment
Operating Temperature	-20 to 70℃
Storage Temperature	-30 to 70°C
Relative Humidity	5~95% (Non condensation)
Vibration	Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
IP Rating	IP65 compliant (for front panel)
Shock	Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Certificate
Certificate	CE/RoHS/FCC Class A
Mechanical
Dimensions (W x D x H)	279mm x 228.6mm x 80.6mm（10.98" x 9" x 3.17"）
Weight (N.W.)	1.4 KG

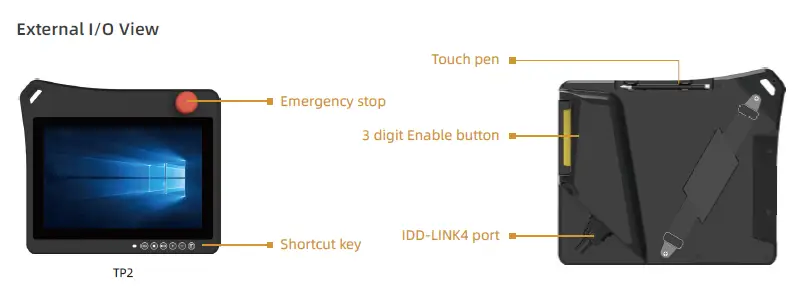

Interface	Emergency stop + 24V + 3-digit Enable button + IDD-LINK4 signal + 18P button signal
Material	Front panel + rear cover：ABS + PC
