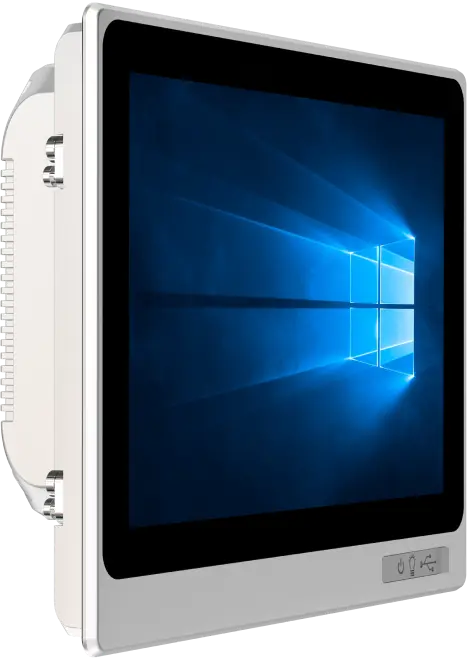

15.6 Inch Industrial Control Panel IP65 Touch Screen PM-IDD22156H

10.1", 10.4", 11.6", 12.1", 12.2", 15", 15.6", 17", 17.3", 18.5", 19", 21.5", 24", 27" Touch Screen
Multi-point capacitive touchscreen

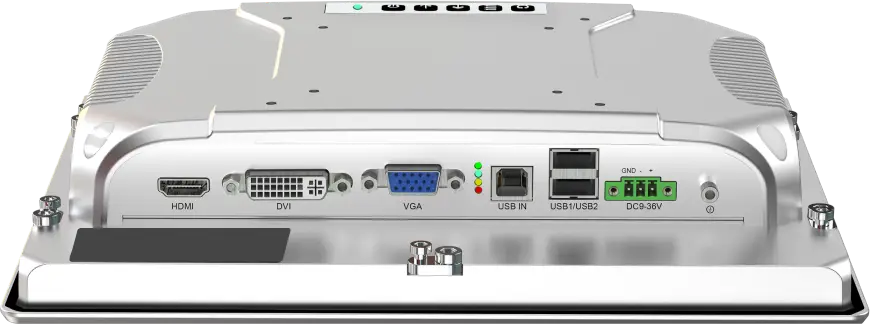

2x USB, 1x HDMI, 1x USB IN
Control button: Set contrast ratio and luminance via OSD at the back cover
9-36V DC wide power range
Supports VESA 100 mount and panel mount
IP65 compliant front panel
Rugged Fanless Design

Are you interested in this product? Just leave us a message and we will get in contact with you.

System Hardware
Display
Size	10.1", 10.4", 11.6", 12.1", 12.2", 15", 15.6", 17", 17.3", 18.5", 19", 21.5", 24", 27"
Touch Type	capacitive multi touch
Transmitiance	85%
Resolution	1920 x 1080
Max Color	16,7 million
Luminance	250 cd/m2
View Angles	-85 ~ 85 ° (H), -85 ~ 85 ° (V)
LED Lifetime	30,000 hrs
OS
OS	Windows 10, Windows 11/ Linux
I/O Interface
USB	2x USB2.0
Display	1x HDMI
Expansion Slot
Power
Button	Yes, in front
DC Input	9-36V DC
Power indicator	Yes
Environment
Operating Temperature	-20 to 70℃
Storage Temperature	-30 to 80°C
Relative Humidity	5~95% (Non condensation)
Vibration	Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
IP Rating	IP65 compliant (for front panel)
Shock	Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Certificate
Certificate	CE/RoHS/FCC Class A
Mechanical
Dimensions (W x D x H)	396mm x 263mm x 62.5mm（15.59" x 10.35" x 2.46"）
Weight (N.W.)	4.2KG
Mounting	Panel mount, wall mount bracket VESA 75/100
Material	Aluminum alloy panel, all-metal chassis
