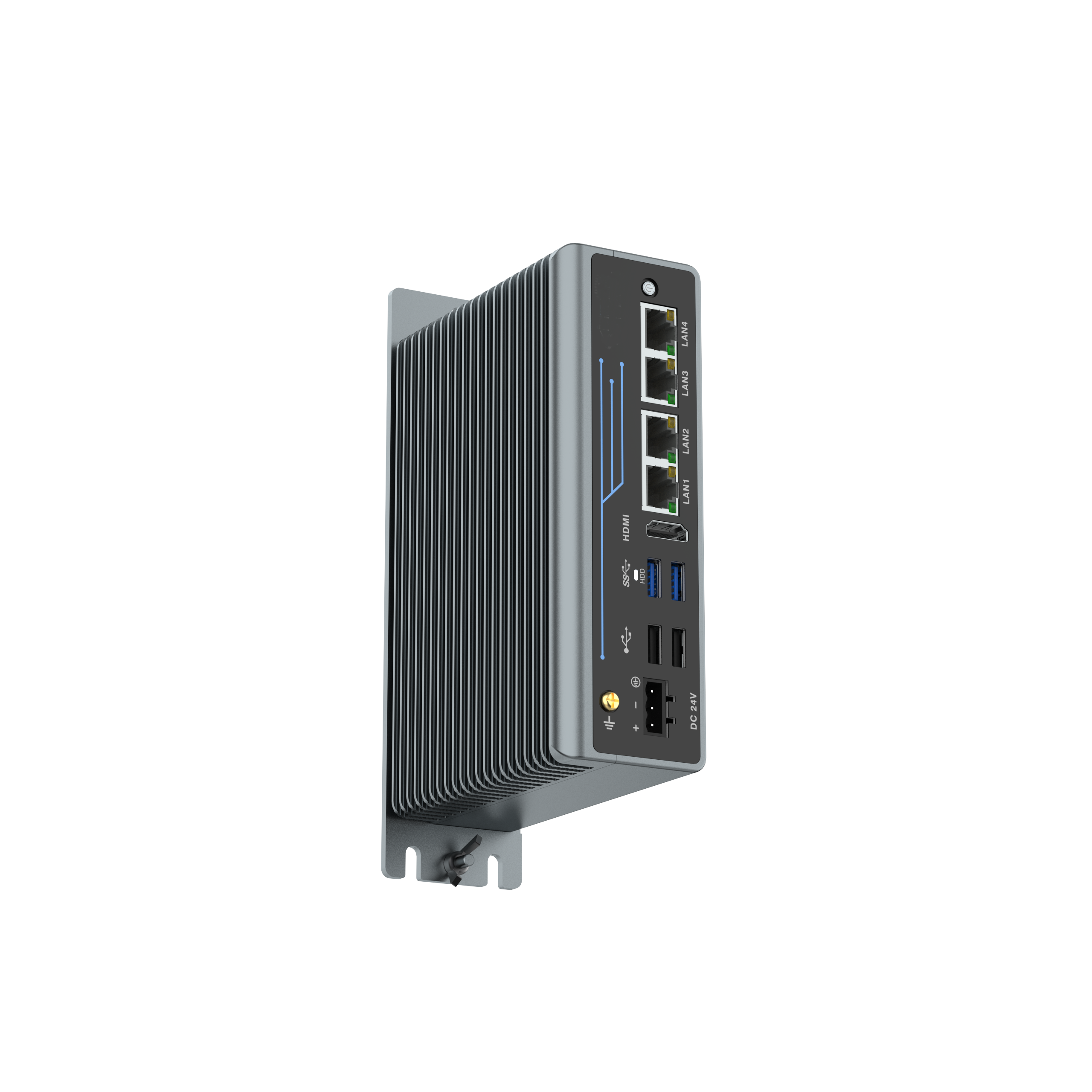

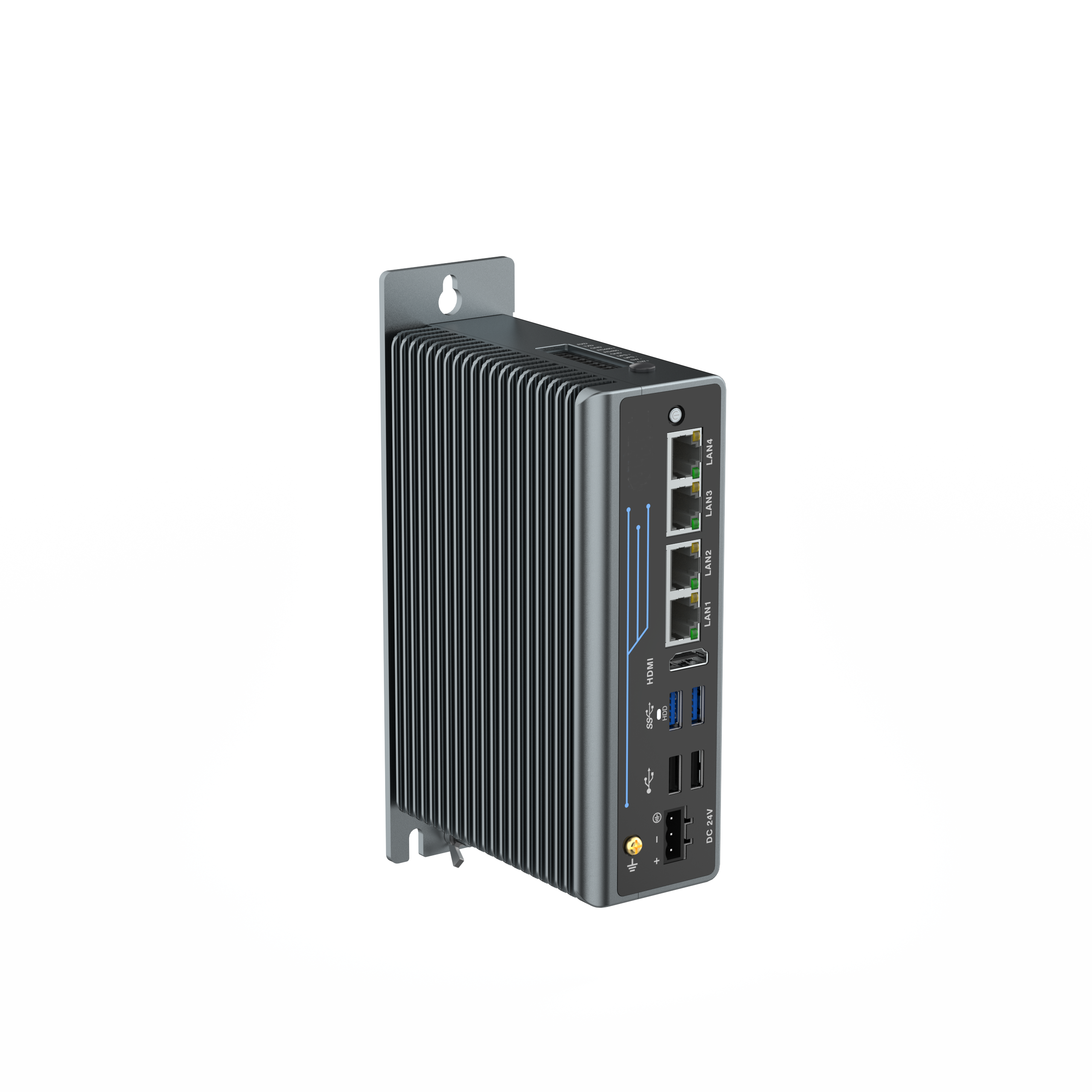

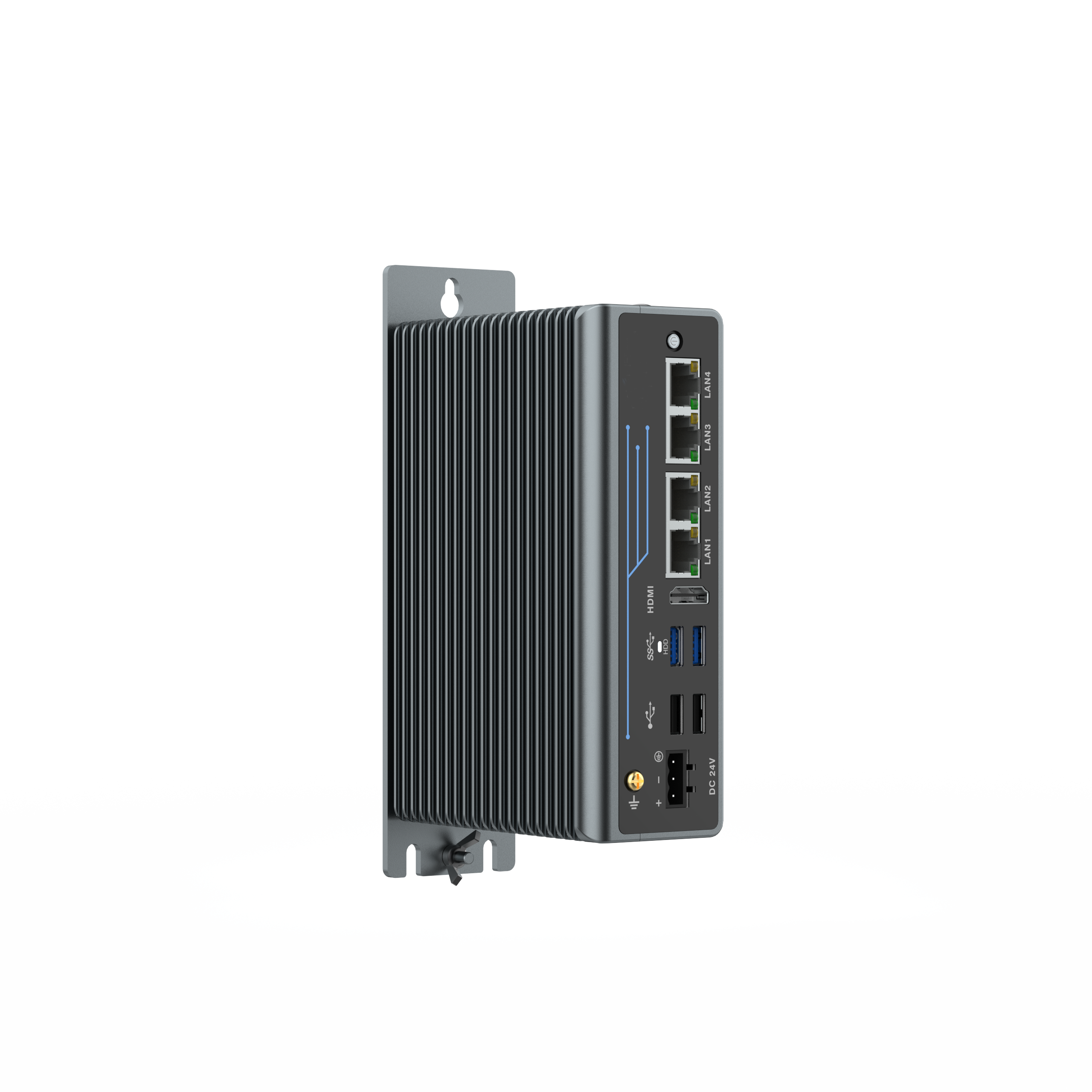

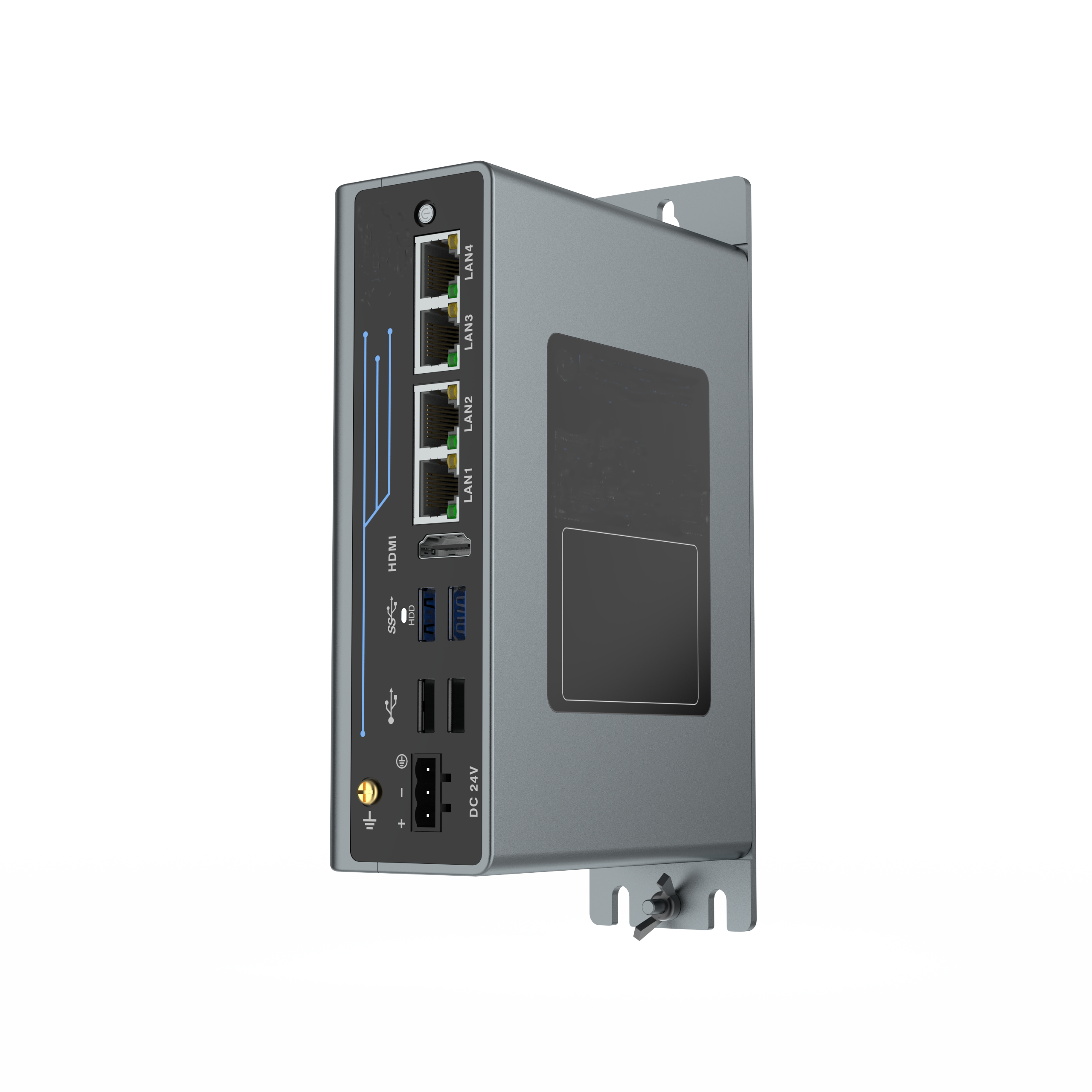

Fanless industrial DIN Rail PC
Features
- Intel® 12th Gen Alder Lake N-Series CPU – Efficient, low-power processing
- Compact & Space-Saving – DIN-rail mountable design
- High-Speed Networking –4× Intel® i210 Gigabit Ethernet ports
- Industrial-Grade Durability – Fanless, cable-free design
- Real-Time Performance – 250μs scan cycle, 20μs jitter
- Enhanced Reliability – Supports system mirroring for backup & recovery
Get a quote!
Are you interested in this product? Just leave us a message and we will get in contact with you.
| System Hardware | |
|---|---|
| CPU | N97, N100, Core i3-N305 |
| Cache | 6 MB |
| BIOS | AMI UEFI BIOS |
| Memory | 1x SO-DIMM DDR4 up to 16GB |
| Storage | 1x M.2 Key M 2280 Slot for NVMe(PCIe 2X Signal)/SATA SSD |
| Ethernet | 4x Intel i210, speed:10/100/1000 Mbps |
| OS | |
| Support OS | Windows 10/11 64bit, Linux 64bit |
| External IO | |
| Graphic | 1x HDMI, Max. resolution: 4096*2160 @30Hz |
| Ethernet | 4x Intel i210, RJ45 |
| USB | 2x USB 3.0, 2x USB2.0 |
| COM | 2x COM, Default RS232, RS485 congurable via jumper |
| Power connector | 12V-24V DC-IN (3-pin 5.08 power connector) |
| ESD (EN61000-4-2) | ±8kV Air Discharge for all surfaces,; ±6kV Contact Discharge for exposed conductive surfaces |
| Internal IO | |
| Mini PCIe | 1x Mini PCIe, PCIe+USB2.0, for Wi-Fi and 4G modules |
| GPIO | 8 bits (4-IN 4*Out) |
| Power | |
| Power DC | DC 12-24 V |
| Environment | |
| Working Temp. | -20 ~ 60° C with air flow |
| Storage Temp. | -40 ~ 80° C |
| Cooling | Passive (Active for i3-N305) |
| Mechanical | |
| Dimension (L x W x H) | 160 mm × 115.5 mm × 50 mm |
| Weight | TBD |
| Installation | |
| Support installing | Din rail mounting |
