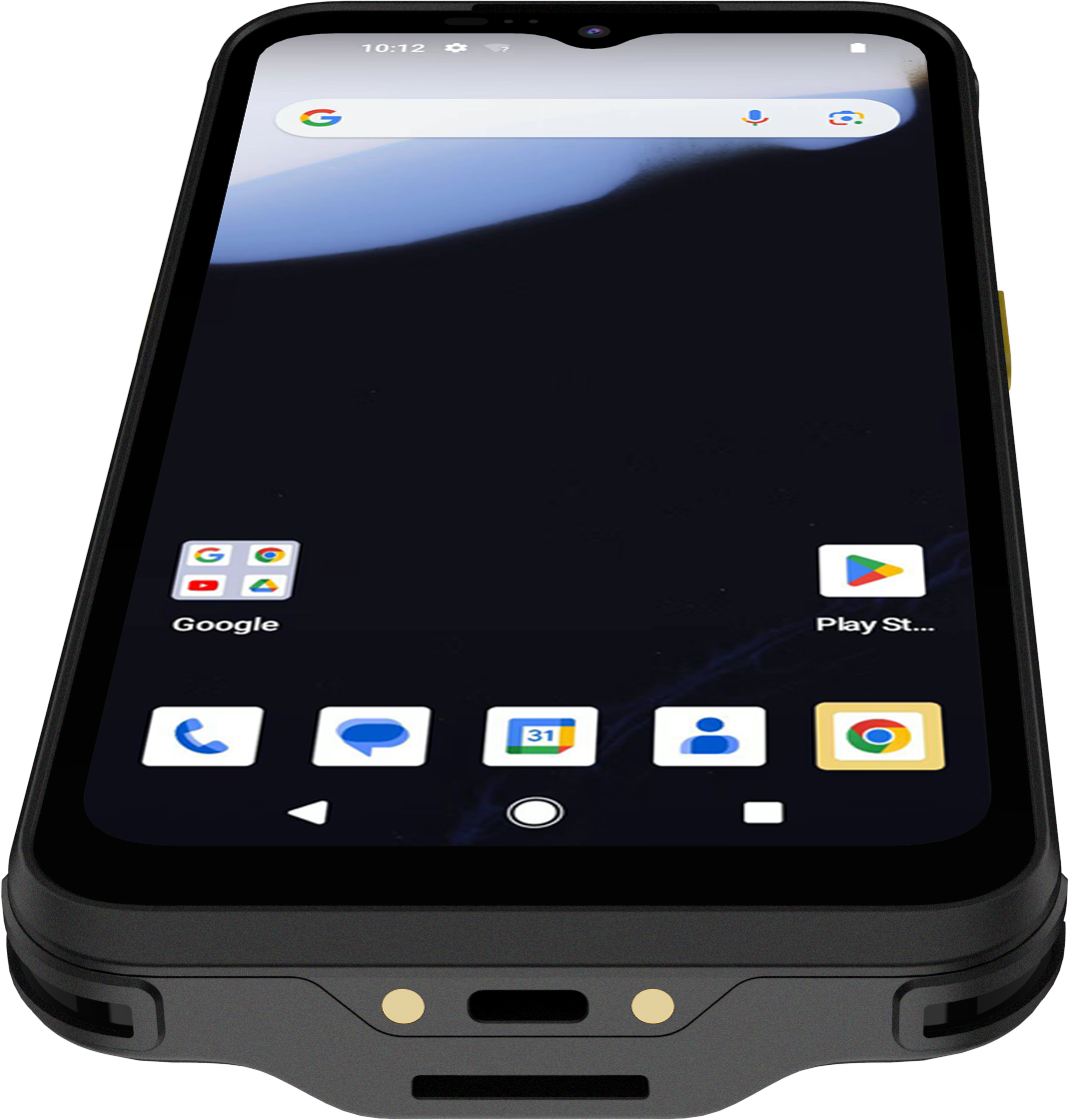

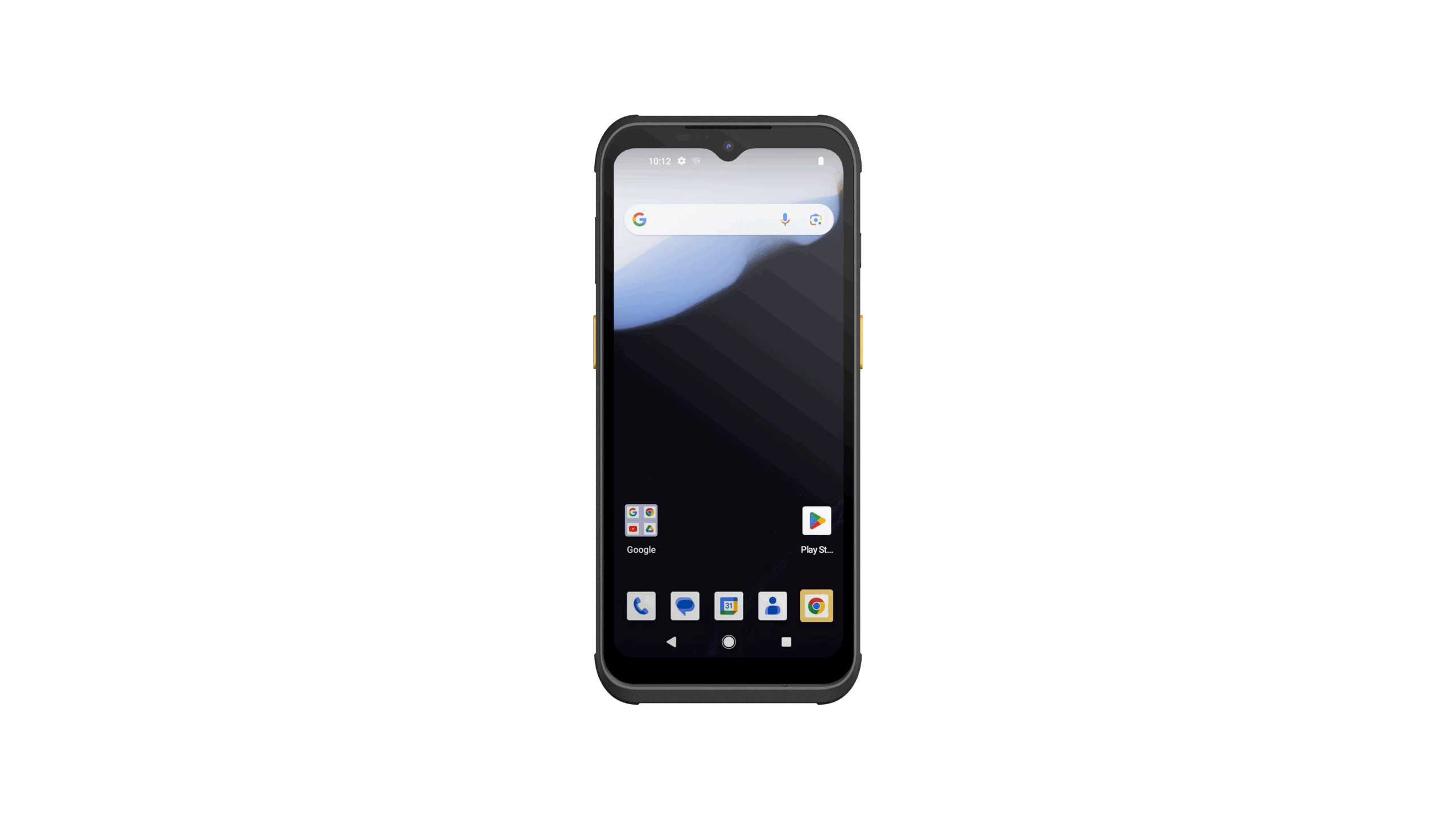

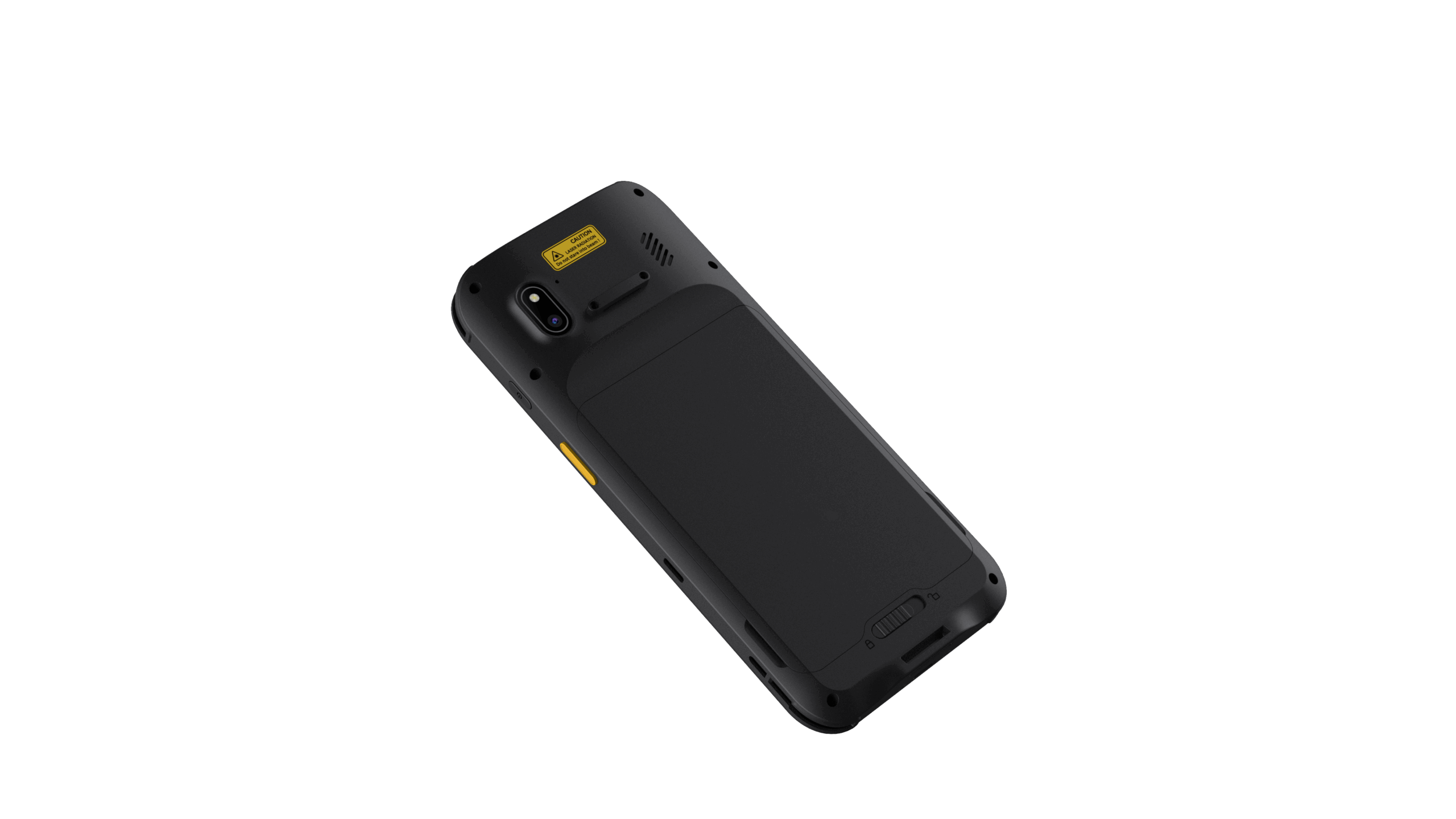

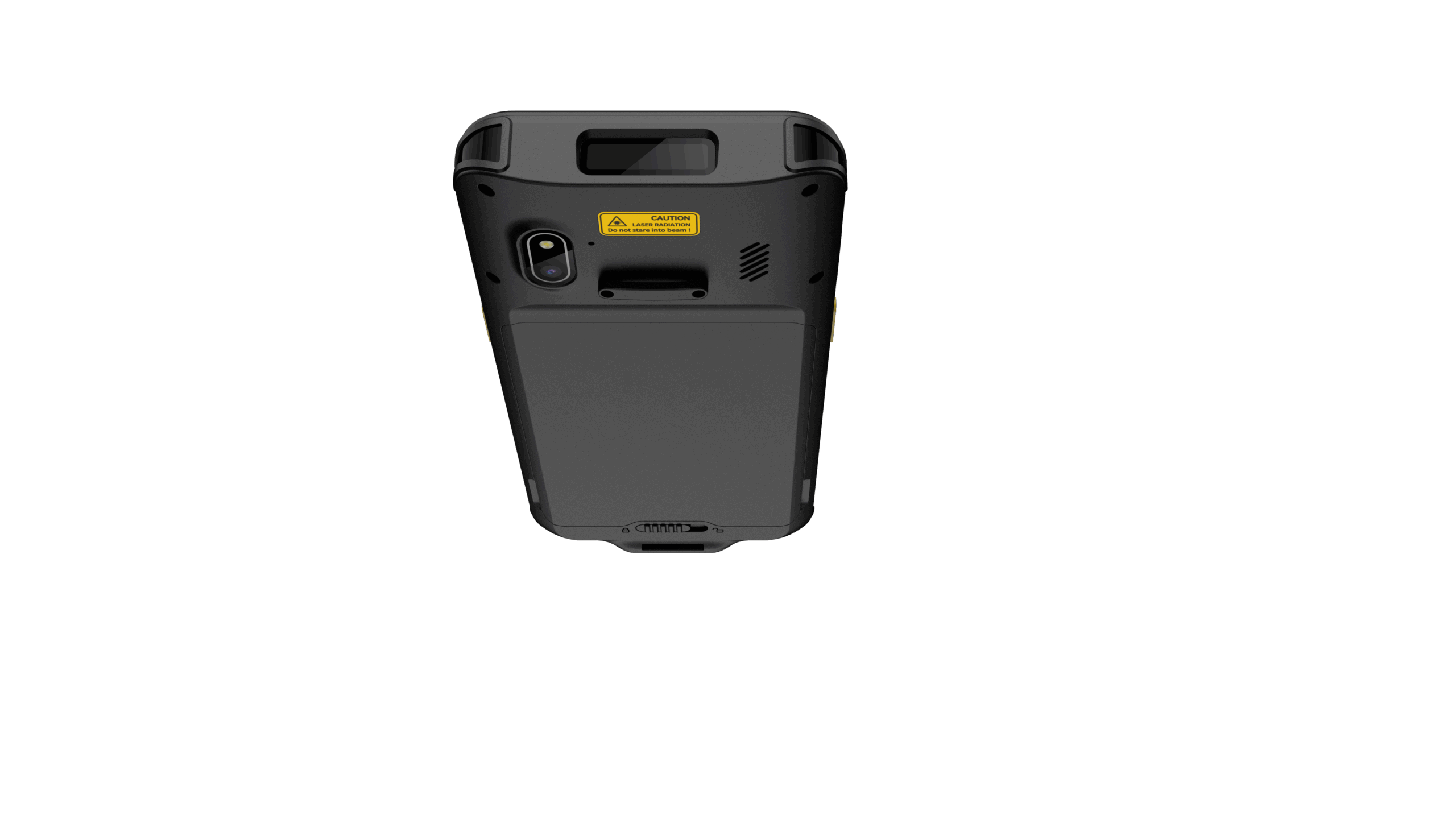

5G Rugged PDA-S65
Features
- 6,5” WXGA (1600x720) 450 nits IPS LCD
- MTK6833, Octa Cortex-A75, 2.2GHz
- 5G, WIFi 802.11a/b/g/n/ac WiG, Bluetooth 5.2, GPS+GALILEO+BEIDOU+GLONASS
- 5MP Front and 13MP Rear Camera
- optional NFC/Optional 2D Barcode Scanner
- Multi point touch, supports glove / wet hand operation
- Built-in 5000mAh, 3.8v lithium battery, removable, 8 hours
- IP67 Compliant, Drop 1.2m
- Android 14, with GMS
Get a quote!
Are you interested in this product? Just leave us a message and we will get in contact with you.
| System Hardware | |
|---|---|
| CPU | MTK6833, Octa Core, Arm Cortex-A76 @ up to 2.2GHz, Arm Cortex-A55 @ up to 2GHz |
| Memory | 4GB (optional 6GB) |
| Storage | 64GB (optional 128GB) |
| Camera | 5MP front camera with fixed focus, 13MP rear camera with auto focus |
| Speaker | Speaker, IP67 waterproof |
| MIC | Dual MIC |
| Earpiece | Waterproof earpiece |
| Button | Power button, Volume +/-, 2*Barcode scanner shortcut key |
| LED Indicator | Charging indicator |
| Sensor | G/L/P-sensor, Hall sensor; optional Compass sensor, Gyro |
| Display | |
| LCD Type | 6,5" HD+ IPS |
| Max. Resolution | 1600*720, 450 cd/㎡ |
| Cover Glass | Glass III, hardness 7H, light transmittance 85% |
| Luminance | 450 cd/m2 |
| Touchscreen | Multi points touch, capacitive touch screen |
| OS | |
| OS | Android 14, with GMS |
| I/O Interface | |
| USB | 1*USB Type C (USB OTG+Charging+Earphone) |
| SIM Card Slot | 1*Micro SIM Card Slot |
| TF Card Slot | 1*TF Card Slot, up to 256GB |
| Communication | |
| WWAN | GSM:B2/3/5/8 WCDMA:B1/2/4/5/8 LTE:B1/2/3/4/5/7/8/12/13/20/25/26/28/34/3 8/39/40/41/66 NR:N1/2/3/5/7/8/12/20/25/28/38/40/41/66/7 7/78/79 |
| WIFI | 802.11a/b/g/n/ac, 2.4G+5.8G Dual-band WIFI |
| Bluetooth | Bluetooth 5.2 (BLE) class1, Transmission range: 10m |
| GNSS | GPS+GALILEO+BEIDOU+GLONASS |
| Extended Functions | |
| NFC | optional 13.56MHz, support 14443A/14443B/15693 |
| RFID | Optional RFID/HF RFID/UHF RFID |
| ID Card Recognition | Optional ID card recognition module |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| Power | |
| Power Input | 5V DC Input, 5V/3A power adapter |
| Battery | 5000mAh, removable 3.8V Li-Ion battery |
| Battery Life | 10 hours (Play 1080P video under LCD 50% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP67 |
| Operating Temp. | -20℃～50℃ |
| Storage Temp. | -20℃～60℃ |
| Certificate | |
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133 |
| Mechanical | |
| Dimension (W x H x D) | 175*78.5*14.5 mm |
| Weight | 285 g (inclusive battery) |
| Color | Black |
| Accessory | |
| Accessory | 5V/3A power adapter |

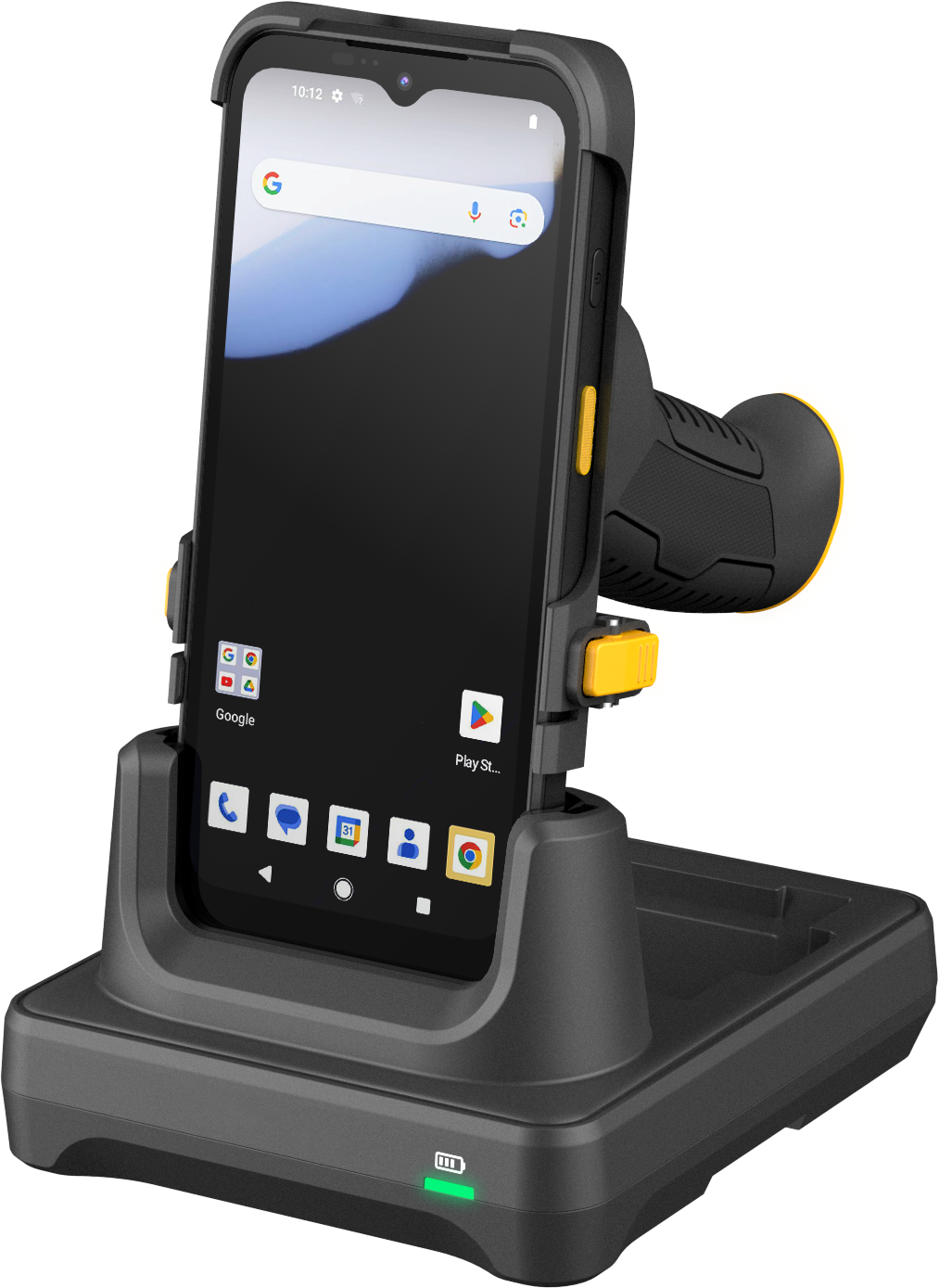

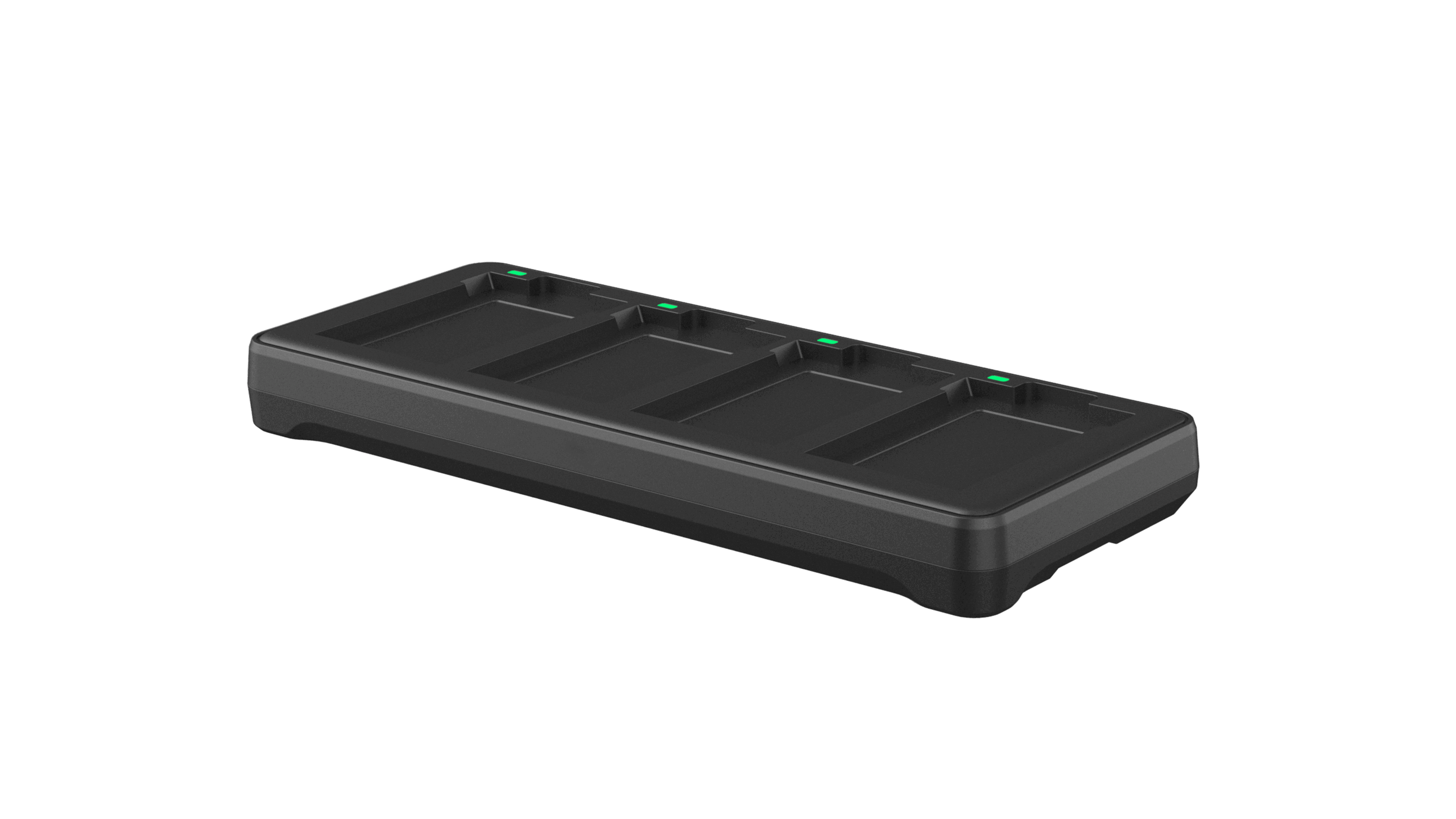

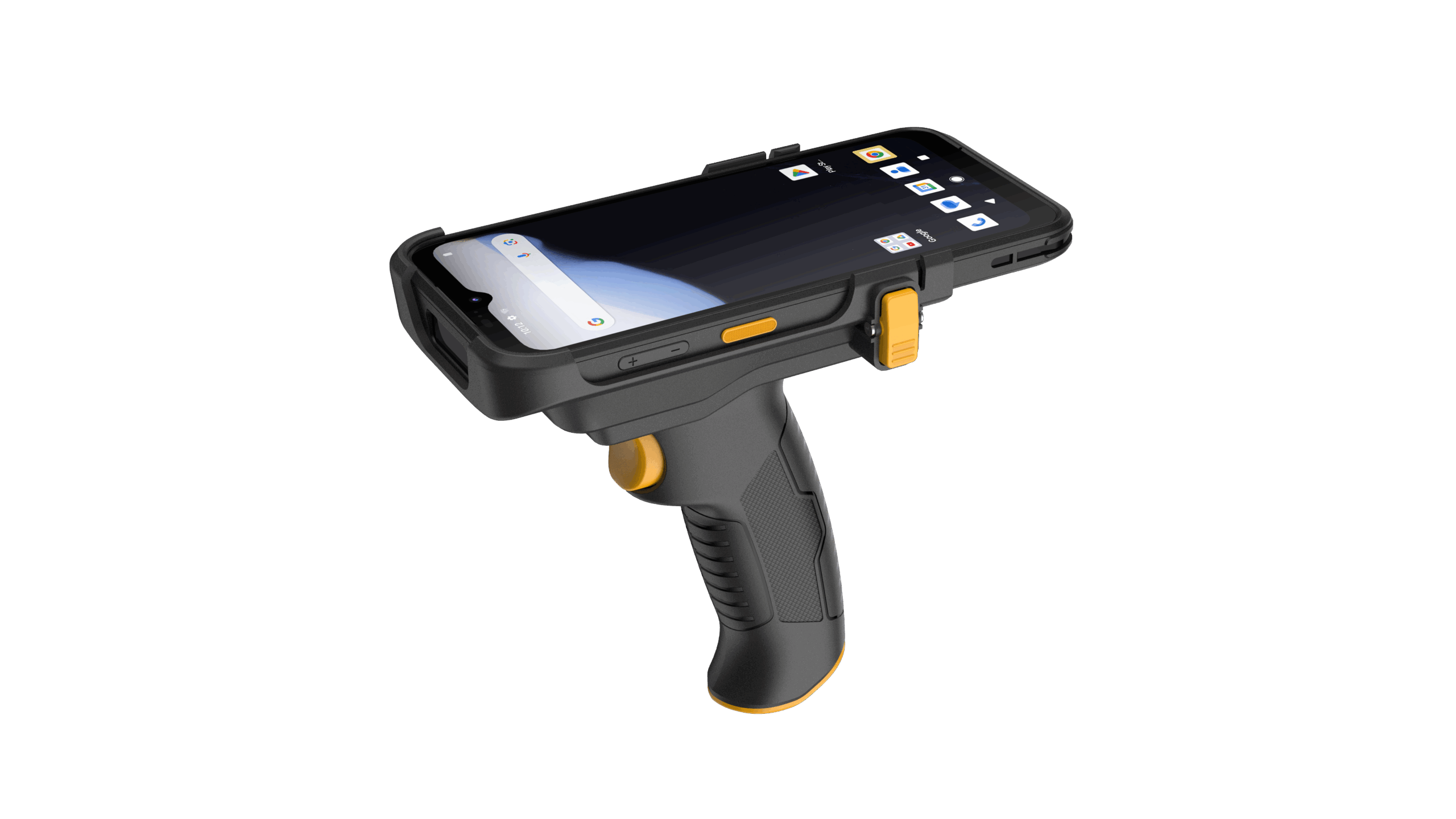

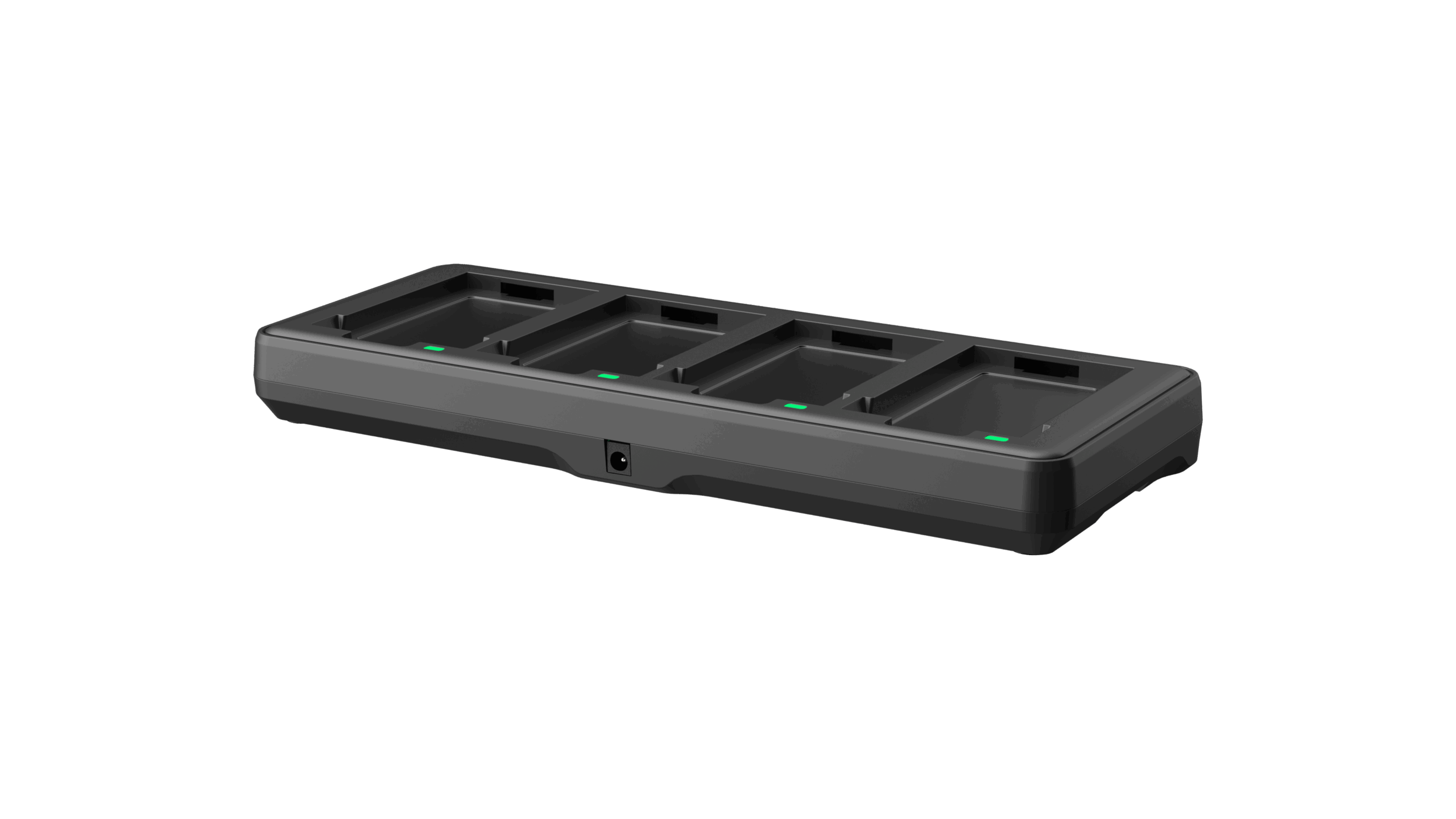

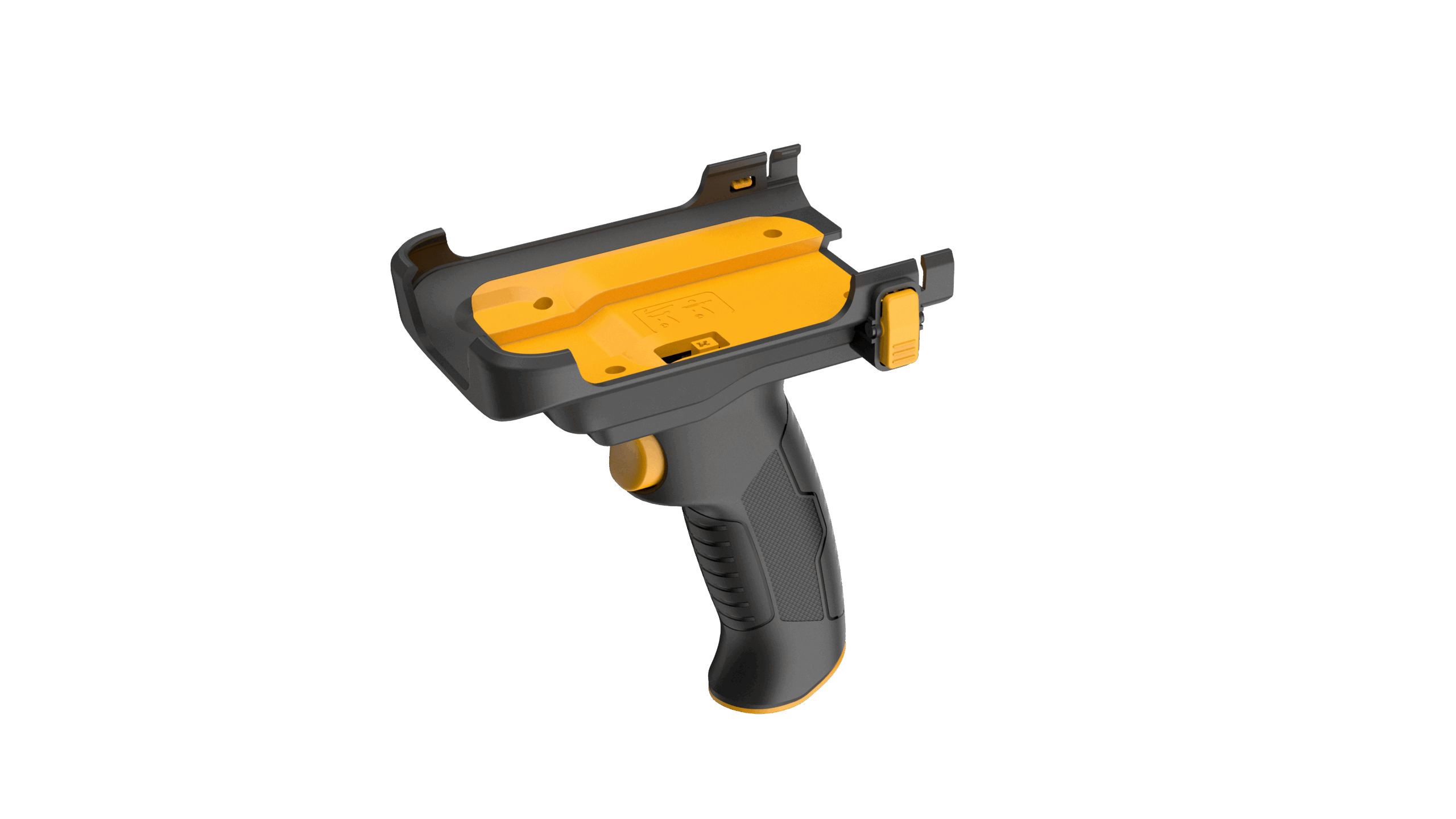

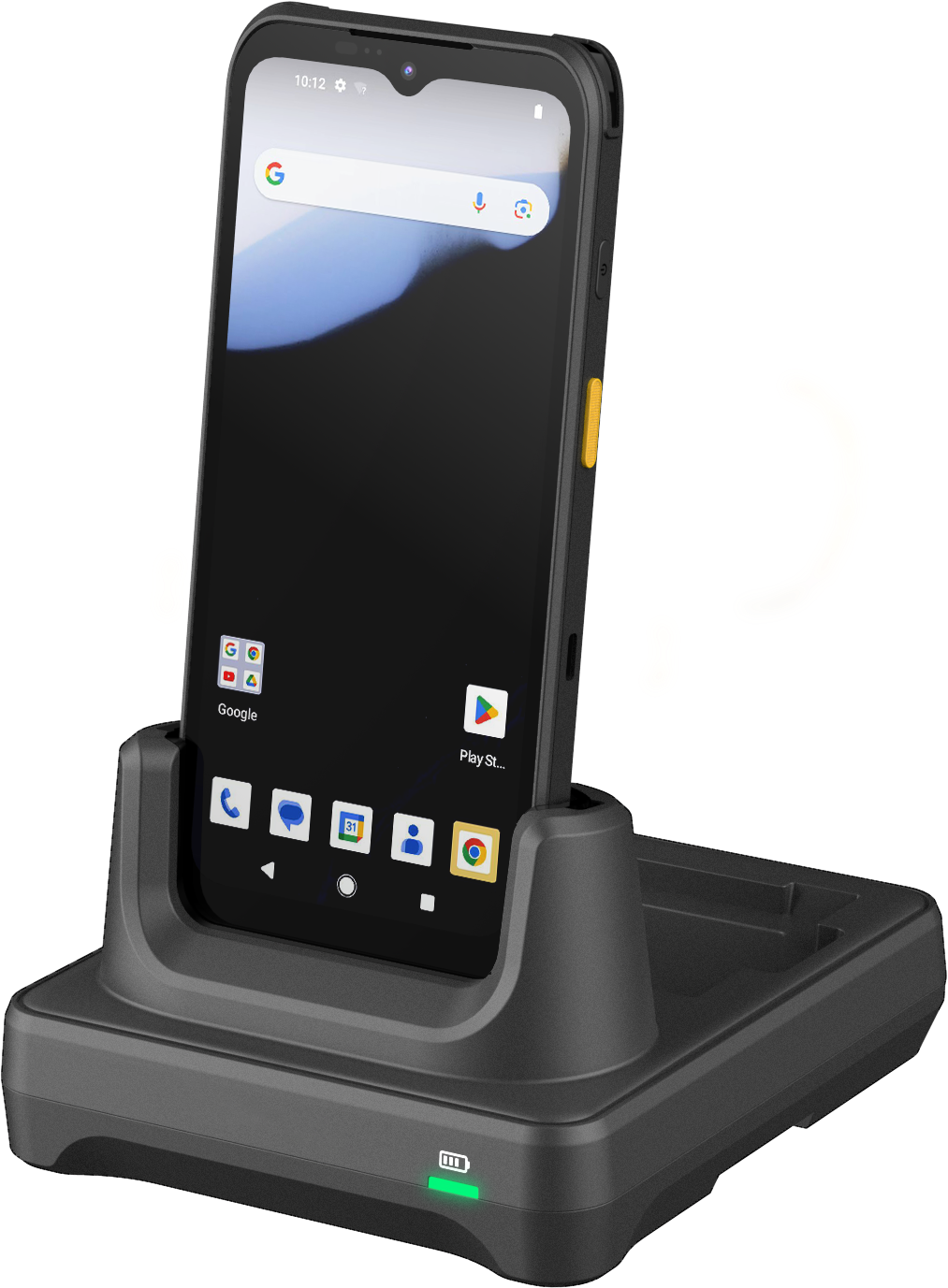

| Optional Accessory | Charging cradle, Scan handle, Hand strap, Quad bay battery charger, Quad bay charging base |
