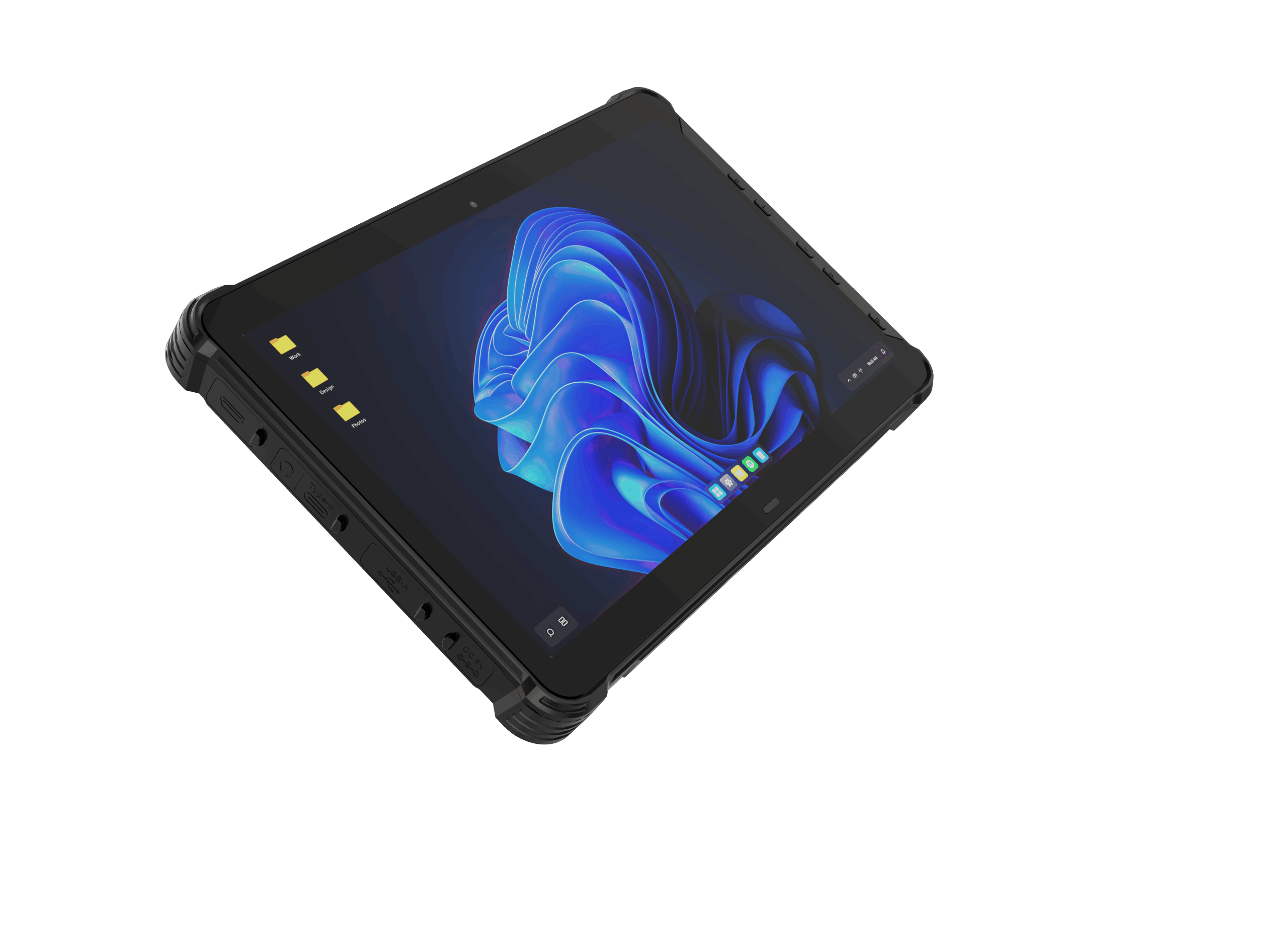

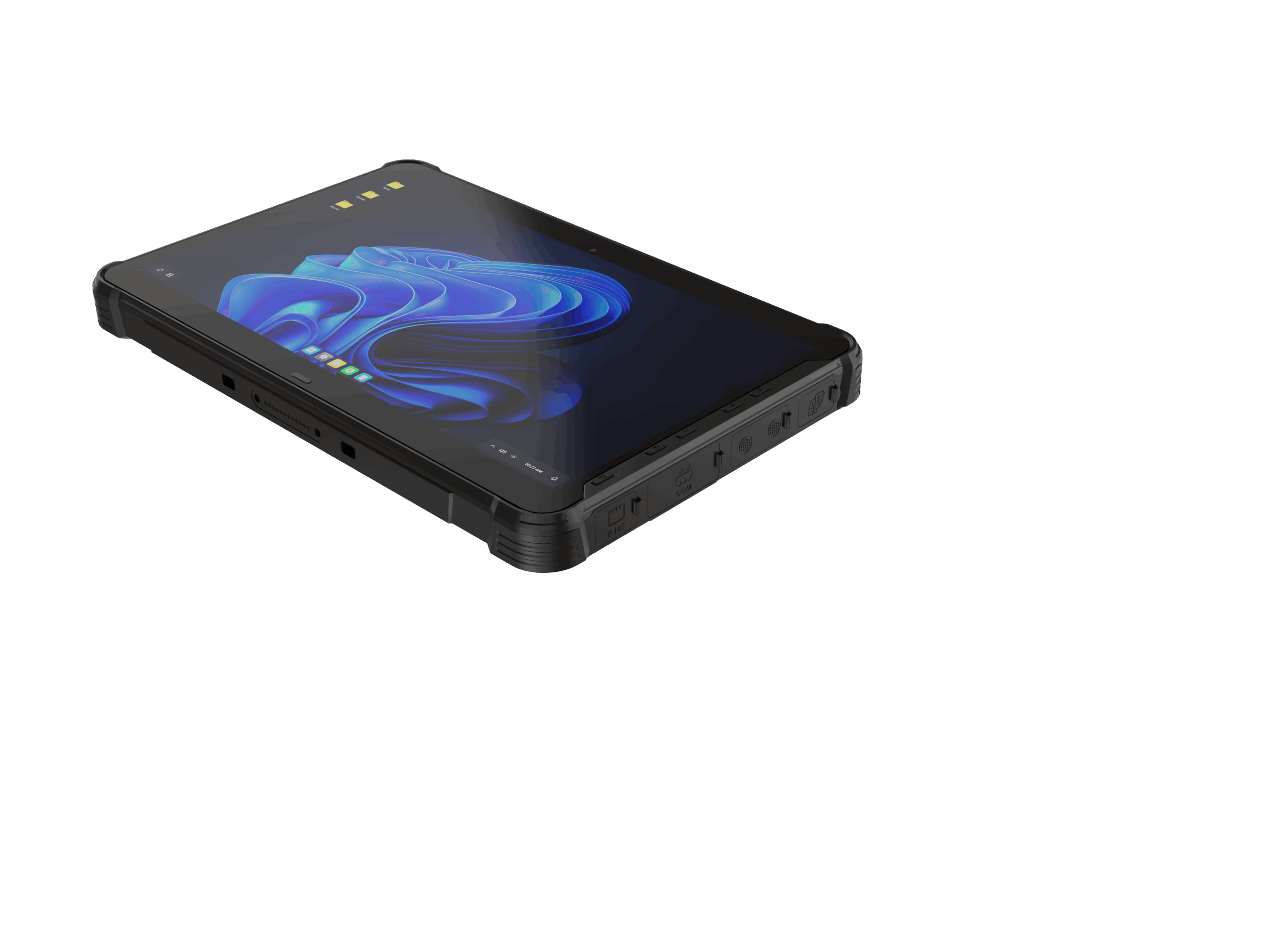

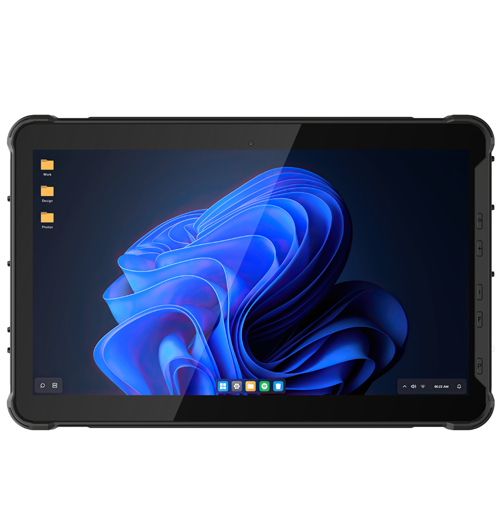

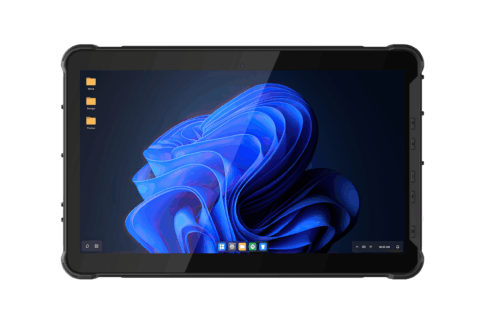

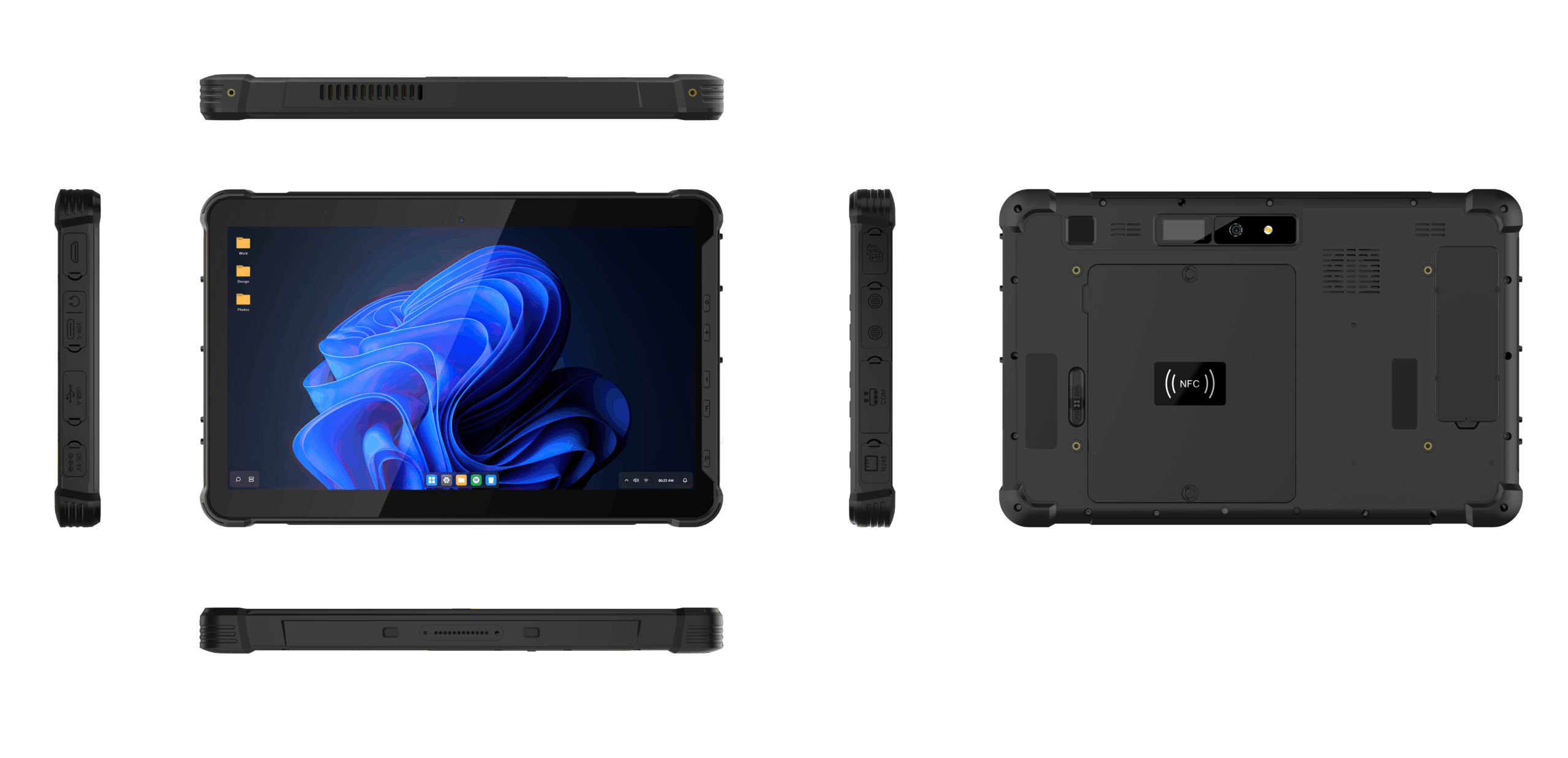

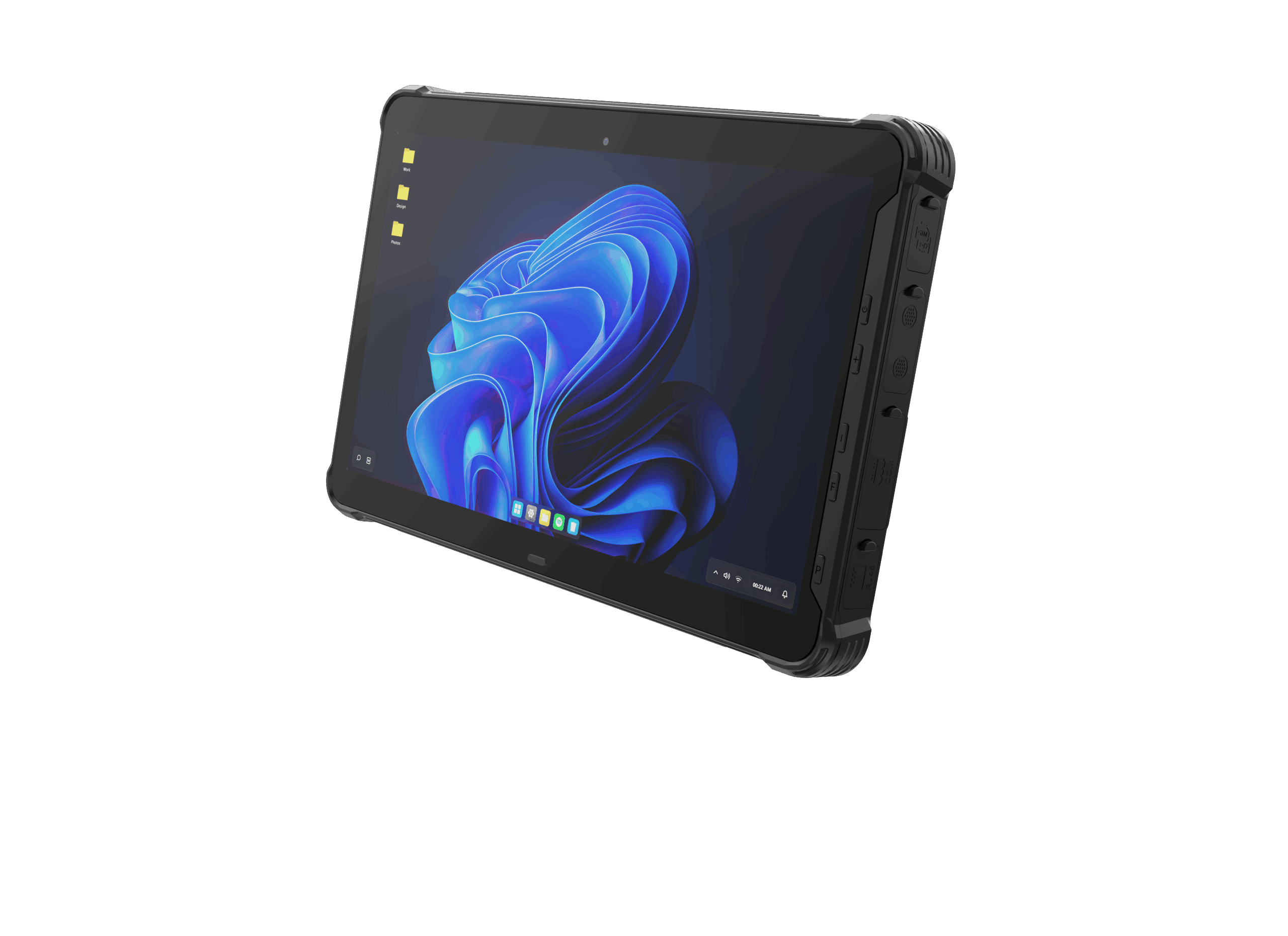

i5 12 inch Windows Rugged Tablet
Features
- 12'' WXGA (2000x1200) 450 nits IPS LCD
- Intel® core 12th i5-1235U/i7-1255U CPU
- WiFi 802.11a/b/g/n/ac/ax, Bluetooth 5.2, GPS+Glonass
- 5MP Front and 8MP Rear Camera
- Optional 1D or 2D Barcode Scanner & NFC/RFID HD or UHD
- 5 and 10 points touch PCAP touch screen, optional AG + glove and wet hand support
- Built-in 10000mAh battery, 7,6V
- IP67 Compliant, Drop 1.2m
- Windows 11
- TPM 2.0
Get a quote!
Are you interested in this product? Just leave us a message and we will get in contact with you.
| System Hardware | |
|---|---|
| CPU | Intel core 12th i5-1235U or i7-1255U |
| Memory | 16GB, optional 32GB |
| Storage | 128GB (optional 256GB-2TB) |
| Camera | 5MP front camera with fixed focus, 8MP rear camera with auto focus |
| Speaker | Dual speaker, 1.2W/8Ω |
| MIC | Dual MIC |
| Earpiece | Waterproof earpiece |
| Button | Power button, Volume +/-, 1*Customize function key 1*Barcode scanner shortcut key |
| LED Indicator | Charging indicator |
| Sensor | G sensor |
| Display | |
| LCD Type | 12" TFT-LCD |
| Max. Resolution | 2000*1200 dpi |
| Cover Glass | Corning Gorilla Glass III, hardness 7H, light transmittance 85% |
| Luminance | 450 cd/m2 |
| Touchscreen | 5-Points projected capacitive touch screen, up to 10-points Optional AG+AF |
| OS | |
| OS | Windows 11 |
| I/O Interface | |
| POGO PIN | 1*POGO PIN (USB+Charging) |
| USB | 1*USB Type C (USB OTG+Charging) 1*USB 3.0, TYPE A |
| Video | 1*mini HDMI |
| Audio | 3.5mm Headphone Jack |
| DC Jack | 1*DC Jack |
| LAN | 1*RJ45, 100 / 1000 Mbps |
| COM Port | 1* RS232 |
| SIM Card Slot | 1*Micro SIM Card Slot |
| TF Card Slot | 1*TF Card Slot, up to 256GB |
| Aviation Plug | Expansion 1*CAN |
| Communication | |
| WWAN | LTE FDD: B1/B3/B5/B7/B8/B20, LTE TDD: B38/B40/B41, WCDMA: B1/B5/B8, GSM: B3/B8 |
| WIFI | 802.11a/b/g/n/ac/ax, 2.4G+5.8G Dual-band WIFI, Wifi 6 |
| Bluetooth | Bluetooth 5.2 (BLE) class1, Transmission range: 10m |
| GNSS | U-blox GPS+Glonass |
| TPM | TPM 2.0 support |
| Extended Functions | |
| NFC | optional 13.56MHz, support 14443A/14443B/15693 |
| RFID | optional 14443A/14443B/15693, optional RFID/HF RFID/UHF RFID |
| ID Card Recognition | Optional ID card recognition module |
| Barcode Scanner | Optional 1D/2D barcode scanner, 2 choose 1 |
| Power | |
| Power Input | 19V DC Input, 19V/4A power adapter |
| Battery | 10000 mAh, removable 7.6V Li-Ion battery |
| Battery Life | 10 hours (Play 1080P video under LCD 50% backlight) |
| Environment | |
| Drop | 1.2m free fall to the wooden floor |
| IP Rating | IP67 |
| Operating Temp. | -25℃～60℃ |
| Storage Temp. | -30℃～70℃ |
| Certificate | |
| Certificate | CE、ROHS、UN38.3、MSDS、IEC62133 |
| Mechanical | |
| Dimension (W x H x D) | 277.48*182.47*21.5 mm |
| Weight | 1.45 KG |
| Color | Black |
| Accessory | |
| Accessory | Hand strap, 19V/4A power adapter |
| Optional Accessory | Docking, Vehicle bracket, Vehicle charger, Passive touch pen, Type-C data cable, Type-C OTG cable |
